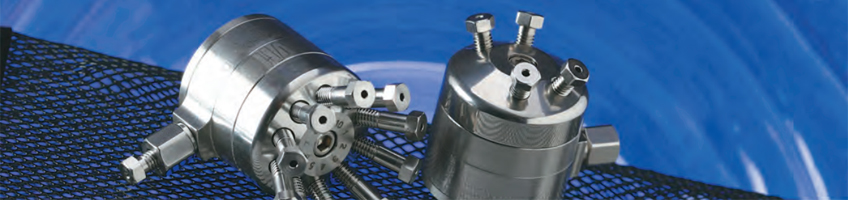

Diaphragm Valves

The VICI diaphragm valve is designed for trouble-free use in applications requiring minimal maintenance and maximum lifetime, making it an ideal choice for the process industry, automated lab analyzers, or continuous-monitoring environmental analyses.

  • Only 35mm (1.375") in diameter
  • > 1,000,000 cycle lifetime
  • Three configurations – 6 port, 10 port, and 4 port internal sample
  • Built-in actuator
  • 1/16" or 1/32" Valco zero dead volume fittings

Part Number

Products

Price

Qty / Buy
VV-DVBRKIT Mounting kit for diaphragm valves, includes SABB, CR4 and screws price on request
VV-DV23-2110 NEW Mini diaphragm 10 port 2-pos valve $ 1335.00
VV-DV13-1110 NEW Mini diaphragm 10 port 2-pos valve 1/32*.25MM, 175C/300PSI LIQ, N60/POLYIMIDE $ 1620.00
VV-DV23-2114-.5 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/16*.4MM, 50C/750PSI LIQ, N60/POLYIMIDE, .5UL $ 1140.00
VV-DV23-2114-1 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/16*.4MM, 50C/750PSI LIQ, N60/POLYIMIDE, 1UL $ 1140.00
VV-DV23-3114-.5 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/16*.75MM, 175C/300PSI GAS, N60/POLYIMIDE, .5UL $ 1140.00
VV-DV23-3114-1 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/16*.75MM, 175C/300PSI GAS, N60/POLYIMIDE, 1UL $ 1140.00
VV-DV13-1114-.5 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/32*.25MM, 50C/750PSI LIQ, N60/POLYIMIDE, .5UL $ 1390.00
VV-DV13-1114-1 NEW Mini diaphragm 4 port 2-pos int/vol valve 1/32*.25MM, 50C/750PSI LIQ, N60/POLYIMIDE, 1UL price on request
VV-DV23-2116 NEW Mini diaphragm 6 port 2-pos valve 1/16*.4MM, 175C/300PSI GAS, N60/POLYIMIDE $ 1140.00
VV-DV23-3116 NEW Mini diaphragm 6 port 2-pos valve 1/16*.75mm, 175C/300psi gas, N60/Polyimide $ 1140.00
VV-DV13-1116 NEW Mini diaphragm 6 port 2-pos valve 1/32*.25MM, 175C/300PSI LIQ, N60/POLYIMIDE $ 1390.00
VV-DV22-PURGE Purge ring for DV22 $ 88.00
VV-V-SV-S32-110VAC VICI 3-way Solenoid air Valve for Diaphragm Valves, 110VAC (CE), ea. price on request
VV-V-SV-S32-220VAC VICI 3-way Solenoid air Valve for Diaphragm Valves, 220VAC (CE), ea. price on request
VV-V-SV-S32-24VAC VICI 3-way Solenoid air Valve for Diaphragm Valves, 24VAC (CE), ea. price on request
VV-V-SV-S32-24VDC VICI 3-way Solenoid air Valve for Diaphragm Valves, 24VDC (CE), ea. price on request
VV-DV22-21D VICI Diaphragm, replacement, 6/10 port, Polyimide for bore 0.25 and 0.40mm, ea. $ 88.00
VV-DV22-31D VICI Diaphragm, replacement, 6/10 port, Polyimide for Valve bore 0.75mm, ea. $ 93.50
VV-DV22-22D VICI Diaphragm, replacement, 6/10 port, Teflon, ea. $ 71.50
VV-DV23-3110 VICI Mini Diaphragm 10 port 2-pos Valve 1/16x0.75mm, gas, N60/PI, ea. $ 1335.00
