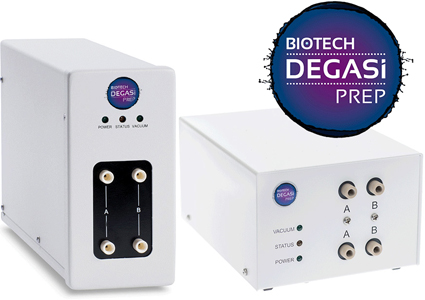

BIOTECH DEGASi PREP

The DEGASi PREP vacuum degassing system for analytical instrumentation and HPLC removes dissolved gasses at flow rates up to approximately 15ml/min per channel. Built for the rigours of modern preparative and semi-prep scale HPLC, its unique design assures reliable continuous operation and the highest level of continuous performance available. The low internal volume of each Systec AF channel offers quick equilibration and short startup times compared with PTFE degassers.

• Recommended Flow Rate: up to 15ml/min
• Internal Volume: 5.3ml
• Degassing Channel Tubing: Systec AF (0.075’’ID)
• Degassing Channel Pressure Rating: 70psi (testing pressure)
• Wetted Materials: Systec AF, PPS, Stainless Steel and Glass-filled PTFE
• Connection: 1/4’’-28 UNF threaded flat-bottom Port
• Size (L x H x B): 197mm x 102mm x 145mm

DEGASi Prep Flyer
